Model No.: RS-C1024

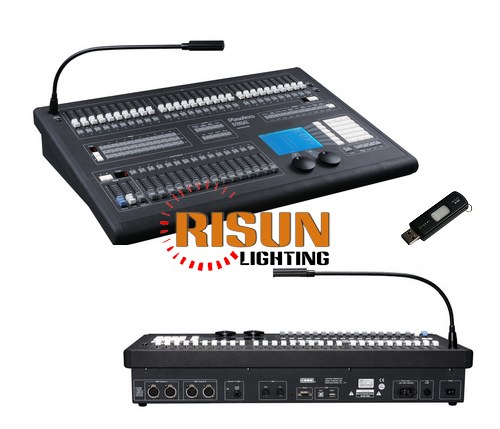

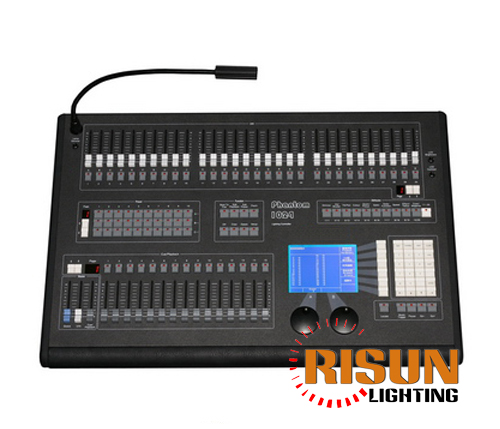

Product: Phantom 1024 Lighting Console

1024 Channels with 4 DMX optical isolated output.

Maximum 240 Units for patching all kinds of Fixtures.

Fixtures within 80 channels are available.

LCD display in Chinese/English.

Two Optical Encoders.

Up to 600 Playbacks, controlled by 15 Playback faders × 40 pages.

Up to 200 groups.

Freely-editing 210 Presets, including various color, gobos and position, are controlled by 30 Preset buttons × 7 pages.

Effect Generator provides circle, square, polygon, rainbow and other Effects.

Over 8000 fixtures in System Library, with create and edit function of User Library, a new fixture can be created easily.

Freely download fixtures Lib and firmware updated version.

USB backup system enable user to backup the show in a file.

Music trigger function for Chase of Playback.

Can be controlled by MIDI Master. Phantom 1024 can be connected by MIDI signal, one for master, another for slave.

The Data auto-saves.

Option: 12V auxiliary light.

Power supply: AC100-240V, 50-60Hz.

Size: 730mm × 490mm × 120mm.

Net weight: 14Kg approx.
