Model No.: RS-C512

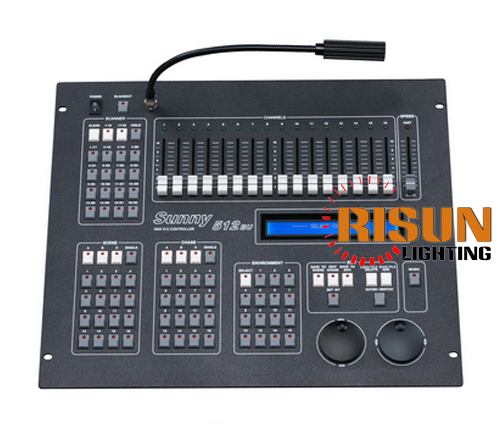

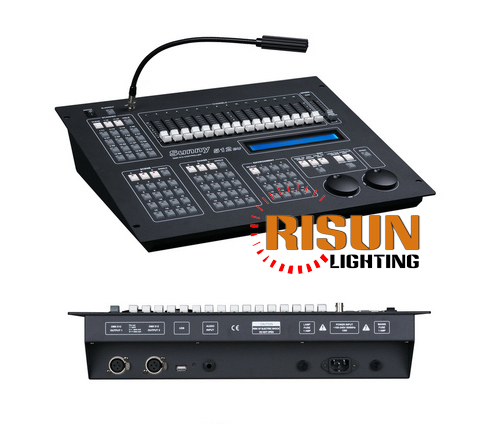

Product: Sunny 512 Lighting Controller

512 DMX channels with 2 optical isolated output.

32 units with 16 DMX channels each.

LCD display.

16 channel faders, 1 chase speed fader, 2 modulation wheels for 16 bit of Tilt / Pan.

48 chases, total 1600 steps. Speed and Cross time of each step can be set respectively.

48 scenes.

15 environment programs to output the combination of different scenes, chases and manual output quickly.

8 chases, 48 scenes can be run simultaneously. At most 32 units can be operated manually.

Music trigger function for Chase.

The Data auto-saves.

Option: 12V Gooseneck lamp with BNC Socket.

Power supply: AC100-240V, 50-60Hz.

Size: 482mm × 400mm × 105mm.

Net weight: 8Kg approx.
