Model No.: RS-C600

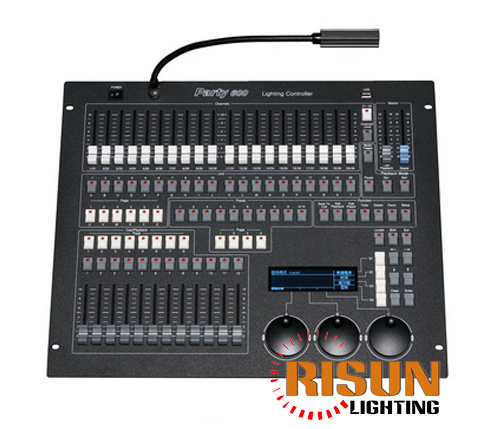

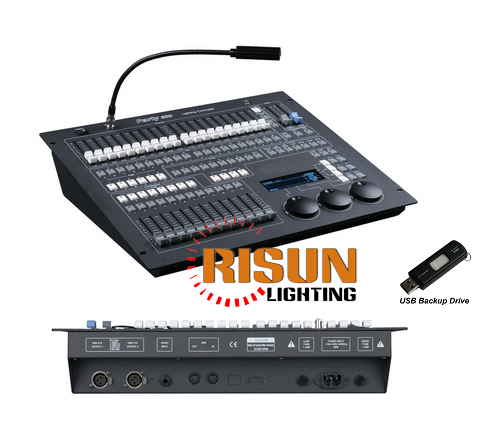

Product: Party 600 Lighting Controller

512 Channels with 2 DMX optical isolated outputs.

Maximum 120 Units for patching all kinds of Fixtures.

Fixtures within 40 channels are available.

LCD display in Chinese/English.

Three Optical Encoders, offer smooth operation and long life.

Up to 96 Playbacks, controlled by 12 Playback faders × 8 pages.

Up to 100 groups.

Freely-editing 40 Presets, including various color, gobos and position, are controlled by 10 Preset buttons × 4 pages.

Effect Generator provides circle, square, polygon, rainbow and other Effects.

Over 8000 fixtures in System Library, with create and edit function of User Library, a new fixture can be created easily.

Freely download fixtures Lib and firmware updated version.

USB backup system enable user to backup the show in a file.

Music trigger function for Chase of Playback.

Can be controlled by MIDI Master. Party 600 can be connected by MIDI signal, one for master, another for slave.

The Data auto-saves.

Option: 12V auxiliary light.

Power supply: AC100-240V, 50-60Hz.

Size: 482mm × 400mm × 105mm.

Net weight: 7Kg approx.
